Daydreaming of extending your rising season and constructing your individual greenhouse? After contemplating the next elements and making just a few extra preparations, you’ll be all set to develop meals for you and your loved ones in your yard greenhouse for years to come back.
The next is an excerpt from The Forest Backyard Greenhouse by Jerome Osentowski. It has been tailored for the net.
What to Take into account Earlier than Constructing Your Personal Greenhouse
1. Basis: Freestanding or Connected?
A freestanding greenhouse is usually a nice alternative to create a very new area with few restrictions. My Phoenix greenhouse at CRMPI is definitely a terrific instance of utilizing design flexibility to really decide and select particulars from the bottom up, providing maybe larger potential for high-end efficiency.
Nonetheless, the prices inherent in constructing a closely insulated north wall might be important, and it doesn’t make a lot sense to construct a small freestanding greenhouse because of this; they are typically overbuilt and inefficient until of satisfactory dimension. I like to recommend minimal dimensions of 12 × 30 toes. Additionally, with out an hooked up construction, it’s extra prone to want backup warmth, relying on the local weather zone step you wish to obtain.
Connected greenhouses provide an oasis proper off of your own home, an additional residing area via the winter, shared heating, and lowered building prices due to a preexisting north wall. They are often any dimension, they usually don’t necessitate the additional paths and infrastructure {that a} separate construction would.
On the identical time an hooked up greenhouse will virtually definitely impede the view to the surface and with no display screen door can introduce bugs to your own home. They carry some danger of undesirable humidity with no sliding glass door and correct air flow. Additionally, your design might be bounded by the preexisting situations of the home that you just wish to retrofit.
2. Orientation

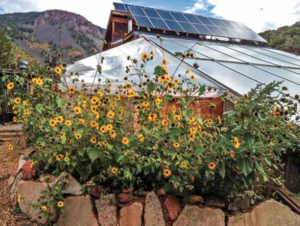

South-facing glazing of Mana, with Shree seen hooked up to the west facet of Mana and volunteer sunflowers within the mattress to the south of Shree. The soil within the beds is retained by urbanite (repurposed damaged concrete). The roof of the home has 6.3 kilowatt photovoltaic photo voltaic panels (PVs) put in, offering all of the vitality for your entire institute.
In North America the optimum orientation for a greenhouse is normally immediately south or southeast, as a result of in chilly climates it’s essential to seize the early morning solar. An east-facing orientation can work as nicely, particularly if there may be some glazing with a southern publicity. In most conditions western orientation or publicity must be prevented due to the potential to overheat.
These suggestions, by the way in which, must be understood to be pointers, not onerous and quick guidelines; it’s essential to look at your scenario fastidiously.
In areas the place it’s cloudy for a lot of the winter, such because the Northwest, orientation is much less essential as a result of the cloud cowl diffuses daylight over your entire sky. Additionally, at larger latitudes, the summer time solar strikes a lot farther north.
3. Size-Width Proportions
A greenhouse that’s shorter than it’s huge doesn’t have as lengthy a window for photo voltaic acquire in the course of the day. At CRMPI, my Mana greenhouse is 24 × 35 toes and tends to not work in addition to the 76 × 26 foot dimensions of Phoenix. This distinction is as a result of the solar has much more time within the day to warmth up an area with a protracted east-west axis. It’s an particularly essential consideration in case you’re constructing a freestanding greenhouse. An excellent rule of thumb is a 3:1 dimension ratio.
4. Basis
There are lots of completely different supplies and strategies for constructing foundations, and you should utilize any that apply to constructing different buildings to a greenhouse. At CRMPI the newest foundations I’ve used have been concrete piers (see picture under) tied along with the framing of the construction. Two earlier greenhouses right here used sunken pressure-treated picket posts for basis footers.
It’s simple to overbuild greenhouse foundations as a result of they’re solely holding up glazing and occasional snow masses, however relying on engineering laws in your space and your method to allowing, your choices could also be restricted. Legal responsibility considerations may also be a consider a faculty or enterprise setting.
5. Roof Slope
Although Phoenix’s roof has a slope of 4/12 (falling 4 inches for each foot of size), at EcoSystems Design we sometimes plan for a 6/12 slope to shed heavy snow masses, relying on the local weather of the area.
As a result of the greenhouse is hotter than the surface air, a layer of snowmelt typically types between polycarbonate glazing and snow, serving to the roof to shed any snow of great weight. Snow tends to stay extra to double-inflated poly.
Associated to the roof slope is the freeboard, the area between the bottom level of the roof and the bottom. In areas with heavy snow, no less than 3 or 4 toes is nice to have in order that snow gained’t pile again up onto the greenhouse roof or impede any vents.
6. Framing and Glazing Supplies
The 2 commonest framing supplies are wooden and metallic. Wooden is superb for smaller greenhouses and has the benefit of being a less expensive, acquainted materials that’s simpler to work, with or with out specialised instruments. Salvaged, rough-sawn, or beetle-kill lumber is available.
Wooden requires larger repairs; though relying on the kind of lumber, it may simply final fifty years in a dry local weather with the correct paint and upkeep.
Practically all business greenhouses in the present day are made with galvanized metal, typically designed to be related in a protracted collection.
Package greenhouses are most frequently product of metal, and the included fasteners and directions could make meeting fairly simple.
Galvanized metal has a for much longer life span than wooden and doesn’t require staining, sealing, or a lot upkeep. As proven by the roof slope of Phoenix, metal framing typically provides much less flexibility in building, particularly when salvaged from different initiatives.
Glazing choices are always evolving. Six-mm double- inflated poly might be cheaper, extra versatile, and fewer insulating, whereas costlier, inflexible polycarbonate panels are likely to last more and maintain up higher in opposition to snow. Double-inflated poly was a superb cheaper possibility within the early years at CRMPI, and it continues to operate nicely on the roof of a number of of our greenhouses.
Glass might be applicable for japanese or southern partitions, nevertheless it must be used just for vertical glazing due to its appreciable weight. Mounting issues can happen due to growth and contraction, and glass presents a a lot larger drawback than polycarbonate or plastic if it breaks. It’s sometimes costlier and fewer insulating than polycarbonate and also will have a tendency to accentuate direct daylight, which might even burn crops in some instances.
7. Insulation
Insulation is important on the north wall and the west wall; ensure to insulate all of the partitions you shouldn’t have glazing on. Foam insulation or structural insulated panels (SIPs) work nicely however have to be sealed and saved dry—they aren’t rated for the humidity in a greenhouse.
I used these panels when establishing Phoenix, however commercially we’ve began to make use of metallic siding immediately in opposition to the Styrofoam on the within of the SIP to get rid of any wooden product. There’s quite a lot of room to implement your individual most popular methodology right here.
Straw bales are a preferred pure constructing methodology however most likely not a good suggestion to be used in a greenhouse due to the potential for mildew issues in a high-humidity setting.
8. Beds and Paths
Folks typically wish to set up massive paths to accommodate carts and wheelbarrows, however consider carefully about the way in which you’re going to be utilizing your greenhouse.
After the preliminary building and mattress preparation, there isn’t a lot must convey massive quantities of fabric out and in. Right here at CRMPI I have a tendency to construct smaller pathways to maximise rising area, and I preserve a big staging space close to the door to convey mulch and supplies in with fifteen-gallon nursery pots.
9. Microclimates
Every greenhouse creates a brand new macroclimate inside it, however inside that may be quite a lot of microclimates. These might be produced by your design and the supplies used and should change over time with the addition of thermal mass by water tanks, extra plant biomass, or new infrastructure.
Whereas the greenhouse local weather might be largely homogenous, it’s essential to establish current microclimates to assist in establishing thriving plant communities.
As an example, chilly air sinks, so in case your greenhouse has two ranges or slopes, the bottom path might be a chilly sink, and the outer edges of the area might be colder within the winter the place they lose warmth to the surface. By putting in circulating followers, you may assist mitigate this drawback.
The southwest nook will normally be the sunniest and hottest quadrant of the greenhouse as a result of it receives essentially the most solar publicity. The northeast might be cooler and is an effective place for a propagation desk or washing station. Pay attention to the way in which plant progress will create shady zones over time, and plan to your tallest perennials within the northwest, typically the tallest level of the greenhouse.
